Prefabricated Metal Steel Structure Warehouse Portal Steel
Structure Building Steel Structure Industrial Park Workshop
Project description:
The steel structure industrial park workshop is a large-scale
manufacturing facility designed specifically for the production and
assembly of steel structures. The workshop is typically a spacious
and well-organized space, equipped with advanced machinery and
tools to facilitate the fabrication process.
The workshop consists of several areas dedicated to different
stages of production. The raw materials area is where steel beams,
plates, and other necessary components are stored and prepared for
fabrication. This area is equipped with cranes and forklifts to
handle heavy materials and transport them to the appropriate
workstations.
The fabrication area is where the steel components are cut, shaped,
and welded according to the design specifications. Skilled workers
use various cutting and welding machines, such as plasma cutters
and arc welders, to shape the steel and join the components
together. This area is equipped with ventilation systems to ensure
a safe working environment.
Once the components are fabricated, they move to the assembly area.
Here, workers assemble the steel structures using bolts, nuts, and
other fasteners. The assembly area is designed to accommodate large
structures, and it may have overhead cranes or gantry systems to
assist in lifting and positioning the components.
Quality control is an essential part of the workshop. Dedicated
inspectors conduct inspections at different stages of production to
ensure that the steel structures meet the required standards and
specifications. This may involve non-destructive testing,
dimensional checks, and visual inspections.
The workshop may also have additional facilities, such as a
painting booth or surface treatment area, where steel structures
are coated with protective finishes to enhance their durability and
resistance to corrosion.
Overall, the steel structure industrial park workshop is a crucial
component of the steel construction industry, providing a
controlled and efficient environment for the fabrication and
assembly of high-quality steel structures.
| Items | Specification |
| Main steel frame | Colume | Q235,Q355 welded H section steel |
| Beam | Q235,Q355 welded H section steel |
Secondary frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 angle steel |
| Tie rod | Q235 circular steel pipe |
| Brace | A235 round bar |
| Vertical and horizontal support | Q235 angle steel, round bar or steel pipe |
| Maintenance system | Roof panel | EPS sandwich panel/glass fiber sandwich panel/rock wool sandwich
panel/Pu sandwich panel/steel sheet |
| Wall panel | Sandwich panel/corrugated steel sheet |
Accessories | Window | Aluminium alloy window/PVC window/sandwich panel window |
| Door | Sliding sandwich panel door/rolling metal door/personal door |
| Rainspout | PVC |
| Live load on roof | In 120kg/sqm(color steel panel surrounded) |
| Wind resistance grade | 12 grades |
| Earthquake-resistance | 8 grades |
| Structure usage | Up to 50 years |
| Finishing options | Vast array of colors and textures available |
| Paint options | Alkyd paiting, two primary paiting, two finish paiting(Gray paint,
red paint, white paint, epoxy zinc etc.) or galvanized |
Company profile:
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel
structure design, research, fabrication and construction company,
located in Qingdao, China. Our company's steel structure processing
plant now covers an area of 35, 000 square meters, plant20, 000
square meters. More than 100 employees. The monthly production
capacity for steel structure is more than 2000 Tons.
We could contract the projects such as prefabricated steel
structure warehouse, workshop, storage sheds, garage, hangar,
chicken shed, car parking, showroom, office buildings, gym,
dormitory building, high rise steel residence buildings,
oli&gas project, power station, infrastructure buildings, etc.
At present, Our products have been exported to Southeast Asia,
South America, Middle East and Africa, Australia, etc. In order to
serve better for the exported project, we get certification of AWS
D1.1, CE(EN 1090-1: 2009+A1: 2011), ISO 14001, ISO9001, ISO45001,
AS/NZS 1554, SGS and BV Certification.
We provide one-stop service for steel structure project, just tell
us your requirement, and we will give you what you need.

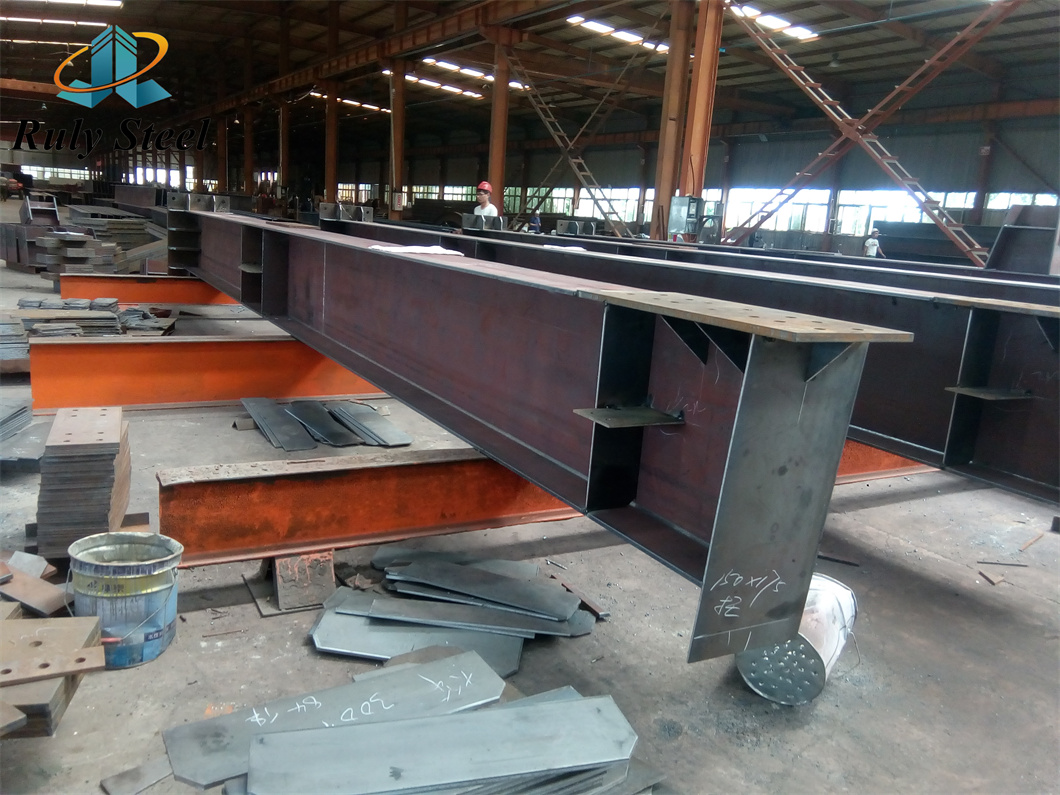

Processing and fabrication:
Our service:
Our certificate:
Packing and loading:
All the structure components, panels,bolts and sort of accessories
will bewell packed with standard package suitable ocean
transportation and loaded into 40'HQ.
All the products are loaded at the loading site of our factory
using crane and forklift by our skilled workers,who will prevent
the goods to be damaged.
Why us:
1. Professional design team, we could design the drawing as your
requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the
independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects,
we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the
production and service as your request.
5. After sales service: If it has any questions that need us to do
in your process of using, such as the maintain of outside
insulation and steel components, just tell us , we will try to
provide the service as well as we can.
How to quote:
The following questions we need to know before offering the
quotation. Just feel free to fill in what you know.
| 1 | Location (where will it be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much
lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m |
