Steel Structure Warehouse With Large Canopy/Steel Structure
Packaging Workshop

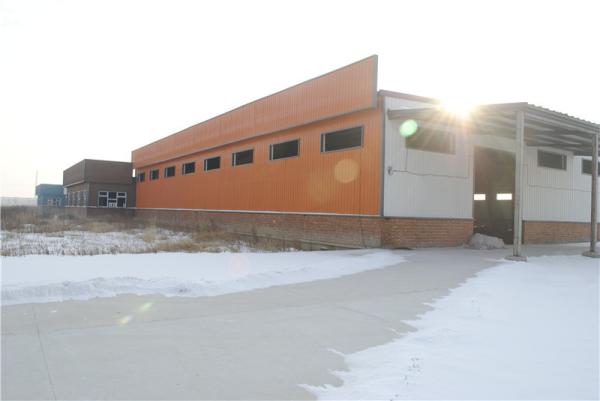

This is a Steel Structure Warehouse With Large Canopy/Steel Structure
Packaging Workshop. We could design and fabricate for the Poultry farm, livestock
house building. The main steel frame structure could be light
H-section steel, steel square tube, double-purlin. The surface
treatment for steel structure components could be paint or hot dip
galvanized.
Project information for Light Steel Frame Structure Buildings for Livestock House
Building:
| Name | Steel Structure Warehouse With Large Canopy/Steel Structure
Packaging Workshop |
| Structure Type | Portal frame, single ridge, two slopes,single span |
| Length | 60 m |
| Width | 25m |
| Eave Height | 7m |
| Roof Slope | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof | steel cladding sheet |
| Wall | steel cladding sheet |
| Height difference between indoor and outdoor | 300mm |
| Service Life | 50-70years | Standard | AISI, ASTM, BS, DIN,JIS |
| Place of Origin | Qingdao,Shandong,China | Material | steel and sandwich panel |
| Grade | Q235B, Q355B or as per customer's need | Application | workshop, warehouse, poultry house,garage etc. |
| Connection | intensive bolt, ordinary bolt | Bolt Grade | M20, M16, M14 etc. |
| Downsput | PVC pipe or as per customer's request | Window | PVC steel or aluminum alloy |
| Purlin | C/Z shape profile | Door | sliding or rolling door |
| Main Frame | welded or hot rolled H section steel, colum and beam | Panel | EPS/PU/fiber glass/rock wool |
| Delivery | 30-40days | Payment | TT,LC
|
Our service:
We could contract the projects such as prefabricated steel
structure warehouse, workshop, storage sheds, garage, hangar,
chicken shed, car parking, showroom, office buildings, gym,
dormitory building, high rise steel residence buildings,
oli&gas project, power station, infrastructure buildings, etc.
Packing and transport
All the structure components, panels,bolts and sort of accessories
will bewell packed with standard package suitable ocean
transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory
using crane and forklift by our skilled workers,who will prevent
the goods to be damaged.
How to quote
The following question we need to know before making the price.
Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much
lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m |
