Q235B Steel Structure Cattle Farm/Prefabricated Steel Structure
Farm
General:

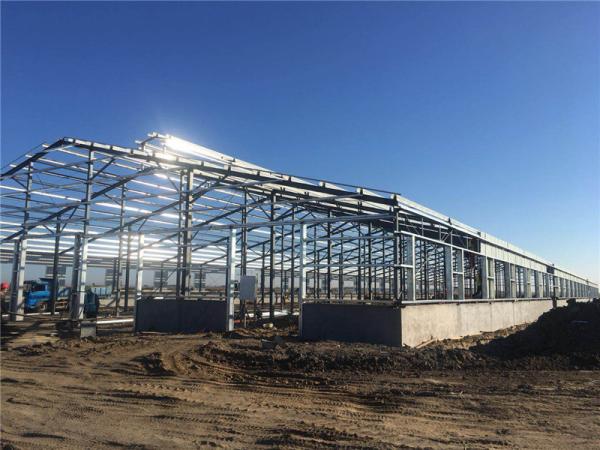

Q235B Steel Structure Cattle Farm/Prefabricated Steel Structure
Farm.This is a Metal Structural Framework Prefabricated Light Steel
Structure Buildings. It could be used to process and store goods.
Lightweight steel structures are widely used in general industrial
and agricultural, trade, and service buildings, such as factories,
warehouses, office buildings, and residential buildings.
The light steel structure workshop has the characteristics of
simple design structure, light weight, high strength, convenient
production and installation, large span of plant space, short
construction period, low price and strong earthquake resistance. It
is a structure widely used in industrial plants.
Project information for Q235B Steel Structure Cattle
Farm/Prefabricated Steel Structure Farm:
| Name | Q235B Steel Structure Cattle Farm/Prefabricated Steel Structure
Farm |
| Structure Type | portal frame, single ridge, single span |
| Length | 60m |
| Width | 30m |
| Eave Height | 9m |
| Roof Slope | flat |
| Gable Wall Column Spacing | 7.5m |
| Roof | 0.5mm steel cladding sheet |
| Wall | 0.5mm steel cladding sheet |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Height difference between indoor and outdoor | 300mm |
Main parts of the steel structures and technical parameters:
| Main Steel Frame System |
| Main structure | H section steel Q355, alkyd painting, two primary painting, two
finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd
painting) |
| Wall & Roof System |
| Roof panel | 0.5mm steel cladding sheet |
| Wall panel | 0.5mm steel cladding sheet |
| Edge cover | 0.5mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system |
| Gutter | 0.5mm color steel plate |
| Rainspout pipes | Φ110 PVC pipe |
Advantages of prefabricated steel structure buildings:
| 1 | High strength and light weight | Although the density of steel is larger than that of other building
materials, its strength is very high. Under the same force, the
steel structure has a small weight and can be made into a structure
with a large span. |
| 2 | Good plasticity and good toughness | The plasticity of the steel is good, and the structure will not
suddenly break due to accidental overload or partial overload. The
toughness of the steel is good, making the structure more adaptable
to dynamic loads. |
| 3 | High degree of industrialization in production | The steel structure is mainly produced in a specialized metal
structure factory, so the production is simple and the precision is
high. |
| 4 | Simple construction and short construction period | All components are prefabricated at the factory, and the site is
simply assembled, which greatly shortens the construction period. |
| 5 | Wind resistance and structural stability | Steel structure construction with light weight, high strength, good
overall rigidity and strong deformation ability |
| 6 | Saving construction costs | The steel structure has light weight, reduces the basic cost, and
has a fast construction speed. It can be completed and put into
operation as soon as possible, and the comprehensive economic
benefits are much better than the concrete structure. |
| 7 | Recyclable | Steel can be recycled, less environmentally polluted when
constructed and removed |
Our steel structure production line:
Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel
structure fabrication and construction company for light and heavy
steel structure Design, Manufacture & Installation.
The floor space of our steel structre fabrication factory is
35,000㎡, and the workshop area is 20000㎡. We own several
light/heavy H steel production lines, BOX production lines, C/Z
purlin production lines and various types of profiling steel sheet
machines with advanced equipment such as plasma cutting machine.
How to install:
We will provide construction drawing before installation for each
project. We could also dispatch our engineer to guide installation
on site or we install it by our construction team.
Packing and transport:
All the structure components, panels,bolts and sort of accessories
will bewell packed with standard package suitable ocean
transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory
using crane and forklift by our skilled workers,who will prevent
the goods to be damaged.
