Prefabricated Steel Structure Workshop With Crane
Prefabricated Steel Structure Workshop With Crane mainly refers to the steel structure buildings that is consisted of
lightweight steel beams and columns, welded steel structure

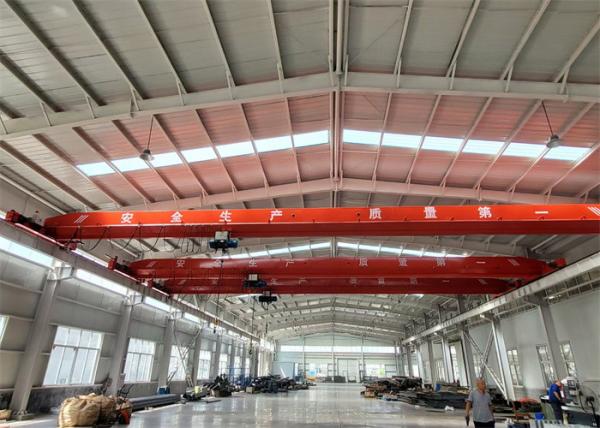

components are connected by bolts. Take this project as an example:
this steel structure warehouse is used to store metal raw material.
It will install a 5 Ton electric single girder crane on the crane
beam. To provide more working space in this building, we dont
design the middle steel column in it. Because of the small wind
load and crane load, the steel quantity for this project is only 35
kg per square meter.
Project information of Structural steel frame warehouse buildings:
| Name | Lightweight Prefabricated Steel Warehouse With Overhead Crane |
| Structure Type | Portal frame, single ridge, single span |
| Length | 90m |
| Width | 25m |
| Eave Height | 8m |
| span | single span |
| Steel structure quantity | 75 Ton |
| Column&Beam | H-section steel, latticed column, honeycomb beam, truss beam |
| Roof & Wall sandwich panel | 0.5mm steel cladding sheet |
| Door | Sliding door |
| Window | Glass window |
Conditions for installing the crane:
1. The hoisting requirements of the unit components should be met.
When the inlet valve is installed in the workshop, its centerline
should be arranged within the working range of the crane auxiliary
hook.
2. The clear distance between the top of the crane and the
suspended ceiling of the factory building (or the bottom chord of
the roof truss and the bottom of the lamp) should not be less than
200-300 mm.
3. The necessary space for disassembling the crane reducer cover,
drum, motor and other components should be provided on the
appropriate part of the roof of the factory building.
4. The distance from the crane end to the wall must not only meet
the needs of the cart to travel, but also leave a gap for the
installation and maintenance of the cart's running wheel mechanism
and the location of the cart.
5. The width of the top surface of the crane beam should meet the
traffic requirements of the operators, and there should be
escalators for drivers and maintenance personnel to get on and off
the crane.
6. The safety distance between the components in the hoisting
installation, the installation equipment, the structure and the
ground shall comply with the regulations of SDJ 173-85.
Steel Designing & Detailing:
We could design the drawing as your requirement or calculate the
steel quantity based on your drawing. We have a dedicated steel
structure engineering design department and research and
development department, and established an independent and complete
steel structure engineering design, optimization and deepening
design system. Establishing engineering materials than building
materials, we not only control the reliability and economy of the
structure, but also the categories, performance, selection and
combination of traditional enclosing materials and new maintenance
materials. Our design is not only more applicable, safer, more
economical, but also rich in architectural beauty.
Our steel structure fabrication factory:
We are manufacture factory. Welcomed to visit us at any time. The
quality control flow and sales team will show you our
professionalism. Also you will get best and most competitive price
after visiting us.
Why us?
1. Professional design team, we could design the drawing as your
requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the
independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects,
we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the
production and service as your request.
5. After sales service: If it has any questions that need us to do
in your process of using, such as the maintain of outside
insulation and steel components, just tell us , we will try to
provide the service as well as we can.
How to quote:
The following question we need to know before making the price.
Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much
lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m
|
