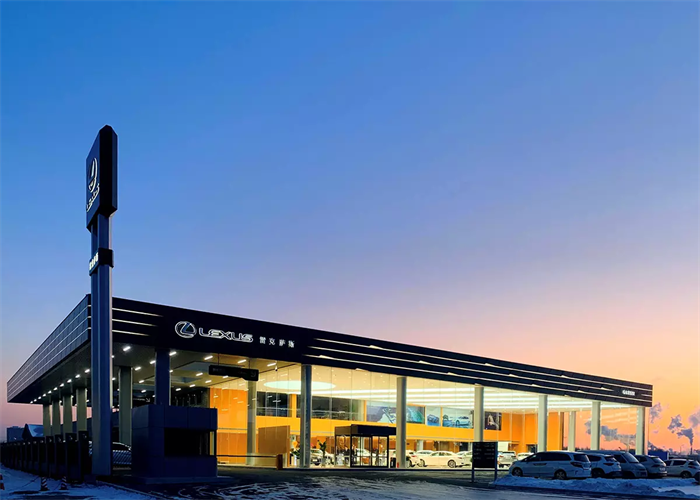

Prefabricated Steel Structure Building Steel Structure Automobile
Sales Servicshop 4S
Advantage of Steel Structure Automobile Sales Servicshop 4S:
(1) Excellent seismic performance The steel structure has strong
flexibility and good seismic performance. It can absorb and consume
a large amount of seismic force through a certain allowable
deformation, thereby reducing the damage to the building by the
seismic force. Many large earthquakes in Japan, Taiwan and other
regions of my country have proved that steel structure buildings
have irreplaceable advantages in ensuring people's lives during the
earthquake.
(2) Light weight of the structure Compared with the traditional
concrete structure, due to the small section of its components, the
steel consumption is equivalent to that of the same frame,
eliminating the need for the concrete weight of the frame beams and
columns. The steel structure is 1/2~1/3 of the weight of reinforced
concrete, which greatly reduces the load of the foundation and
reduces the amount of concrete.
(3) High construction accuracy. A large number of standardized
steel components adopt mechanized operations and are completed in
the factory. Therefore, the construction accuracy of the components
is higher in precision and quality than the concrete structure cast
on site.
Material list and technical parameters:
| Items | Specification |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel |
| Tie Rod | Q235 Circular Steel Pipe |
| Brace | Q235 Round Bar |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Rainspout | PVC |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade | 12 Grades |
| Earthquake-resistance | 8 Grades |
| Structure Usage | Up to 50 years |
| Temperature | Suitable temperature.-50°C~+50°C |
| Certification | CE, SGS, ISO9001:2008, ISO14001:2004 |
| Finishing Options | Vast array of colors and textures available |
| Paint Options | Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or
Galvanized. |
Our steel structure production line:
How to install:
We will provide construction drawing for each project before
installation. We could dispatch our engineer to guide installation
on site or our construction team construct on site.
Packing and transport:
All the structure components, panels,bolts and sort of accessories
will bewell packed with standard package suitable ocean
transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory
using crane and forklift by our skilled workers,who will prevent
the goods to be damaged.
How to quote:
The following question we need to know before making the price.
Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much
lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m |
