Ready Made Steel Structures Garment Factory Building / Multi Spans
Metal Workshop
Ready Made Steel Structures Garment Factory Building / Multi Spans

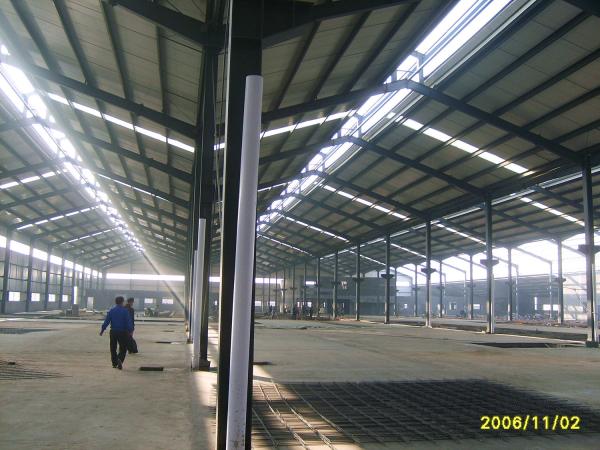

Metal Workshop.This Steel frame structure factory building is used as a Cloth or
garment factory. It has two spans, two ridges. Roof skylight, Fixed
window& Sliding window on wall could provide more light. Glass wool
sandwich panel could keep the temperature stable to some extent. It
also addes one steel frame building along one side of the main
building as storeroom and office. Compared with concrete factory
building, Prefabricated steel frame structure factory building
could provide more space, save construction cost and time. As it
does not have crane, the steel quantity is also light for this
project.
Pre engineering steel frame structure workshop building is a new
type of building structure system. The building structure system is
formed by the main framework through linking up the H beam,Column,
purlin.Roof and wall using a variety of panels together with other
components such as windows and doors. Pre engineering steel frame
structure workshop building has the advantages of wide span, high
strength, light weight, low cost, temperature protection, save
energy,beautiful appearance, short construction time, good effect
of insulation, long using life, space-efficient, good seismic
performance, flexible layout,etc.
Project information for Ready Made Steel Structures Garment Factory
Building Workshop Fast Installation
| Name | Ready Made Steel Structures Garment Factory Building / Multi Spans
Metal Workshop |
| Structure Type | portal frame, two ridges, two spans with office and storeroom
building |
| Length | 120m |
| Width | 50m |
| Eave Height | 11m |
| Roof Slope | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof | 75 mm thick Glass wool sandwich panel |
| Wall | 75 mm thick Glass wool sandwich panel |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Height difference between indoor and outdoor | 300mm |
Main parts of the steel structures and technical parameters
| Main Steel Frame System |
| Main structure | H section steel Q355, alkyd painting, two primary painting, two
finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd
painting) |
| Wall & Roof System |
| Roof panel | Glass wool sandwich panel |
| Wall panel | Glass wool sandwich panel |
| Edge cover | 0.5mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system |
| Gutter | 0.5mm color steel plate |
| Rainspout pipes | Φ110 PVC pipe |
Our service:
We could contract the projects such as prefabricated steel
structure warehouse, workshop, storage sheds, garage, hangar,
chicken shed, car parking, showroom, office buildings, gym,
dormitory building, high rise steel residence buildings,
oli&gas project, power station, infrastructure buildings, etc.
How to install
Method 1: We provide shop drawing before installation.
Method 2: If you still don't know how to install, We will teach you
the installation in our factory. when necessary , we will assemble
a sample steel structure building for you.
What we do:
We can produce light and heavy steel structure buildings, such as
warehouse, workshop, storage, construction materials, high rise
steel office buiding, factory , plant, exhibition hall, steel tile.
How to quote
The following question we need to know before making the price.
Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much
lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m |
