Welded Cross-section Steel Crossing Column Structural Steel
Fabricators
How to fabricate cross-section steel crossing column

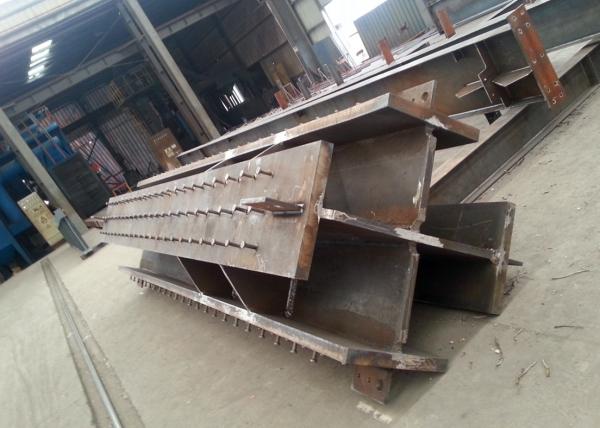

Welded Cross-section Steel Crossing Column Structural Steel
Fabricators. The H-shaped steel production automatic assembly line is first
processed into H-shaped steel, then processed into T-shaped steel,
and finally assembled into ten columns.This cross-shaped steel
column is used as a profile steel for steel reinforced concrete
columns. After the steel plate is cut by a multi-head cutting
machine, the web and the flange plate are assembled, and then
welded by automatic boat-shaped position, then corrected, cut and
assembled into a cross column, and the cross weld in the middle of
the cross-shaped steel column is protected by CO2 gas. Soldering
and welding.
Process flow:
Stakeout cutting → production of H-shaped steel → production of
T-shaped steel → cross column assembly → welding of cross column →
cross column correction → assembly of the zero plate on the cross
column.
Our company can process all kinds of cross-beam/column shaped parts
according to the drawings. Process: automatic submerged arc
welding/CO2 gas shielded welding, subsequent processing content:
perforated/reinforced plate/rust removal/paint, etc., main weld
grade : Level 1, Level 2, Level 3, providing a flaw detection
report issued by a third party.
Fabrication capacity:
We have three steel structure production lines, equipped the flame
cutting machine, H-Section steel assembly machine, gantry welding
machine and shot-blasting machine, paint spray booth. We also put
apart the space for the fabrication of heavy-duty and large
structure steel components in our workshop.
Specification:
| Products Name | Welded Cross-section Steel Crossing Column Structural Steel
Fabricators |
| Grade | Q235B,SS400,Q345B,S235JR,S275JR,ASTM-A36 |
| Size | 100x100mm-1500x1500mm |
| Thickness | 8mm-100mm |
| Length | 2-20meters |
| Shape | Cross-shaped column |
| Delivery Time | 7-15 Days if in stock size, or it will be 20-40 for customized |
| Payment Term | L/C or T/T |
| Package | By bundle or as customer's requirement |
| Application | Engineering or project, plant and equipment, mechanical equipment,
bridge, etc |
| Surface | Black, coating, galavnized |
| MOQ | 30Ton |
What service we could do for you:
1. Structural steel fabrication, painting , galvanizing ,
pre-assembly
2. Designing, fabrication and installation for Prefabricated steel
structure building.
3. Deepen or design the fabrication drawing or shop drawing based
on your architectural drawing and construction drawing
4. Engineering consulting service
Quality control:
QC/Technical Support
Raw material quality control
Thickness tolerance <0.25mm
Yield and tension strength testing in-house
Third party inspection certificate
Supply traceable mill certificate
Structural steel fabrication quality control
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full
penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.
Shot blasting and painting quality control
Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no
welding spatter, Roughness >75um
Paint primer within 5 hours after shot blasting, Holiday-free
coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM
Pre-assembly testing the connection details.
Why us:
1. Professional design team, we could design the drawing as your
requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the
independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects,
we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the
production and service as your request.
5. After sales service: If it has any questions that need us to do
in your process of using, such as the maintain of outside
insulation and steel components, just tell us , we will try to
provide the service as well as we can.
