Welded Structural Steel H Beams / Large Size Metal Lightweight
Steel Beams
What isWelded Structural Steel H Beams / Large Size Metal
Lightweight Steel Beams:

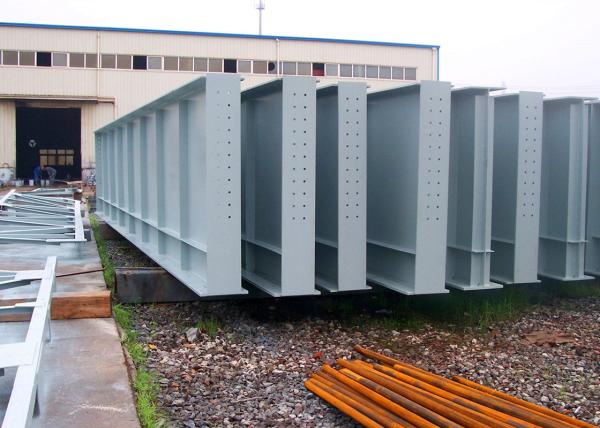

Welded Structural Steel H Beams / Large Size Metal Lightweight
Steel Beams. Welded steel structure crane beam is a beam structure
that supports the operation of the overhead crane. There are crane
tracks on the beam, and the crane travels back and forth on the
crane beam through the track.
The flange plate of the welded crane beam should be a layer of
steel plate. When two layers of steel plate are used, the outer
steel plate should be set along the beam length, and measures
should be taken in the design and construction to make the upper
flange two layers of steel plate in close contact.
Supporting clamps or rigid material hard-hook cranes and crane-like
structures are not suitable for use with crane trusses and brake
trusses.
Our steel structure fabrication factory:
We have three steel structure production lines, equipped the flame
cutting machine, H-Section steel assembly machine, gantry welding
machine and shot-blasting machine, paint spray booth. We also put
apart the space for the fabrication of heavy-duty and large
structure steel components in our workshop.
Specification:
| Products Name | Welded Structural Steel H Beams / Large Size Metal Lightweight
Steel Beams |
| Grade | Q235B,SS400,Q345B,S235JR,S275JR,ASTM-A36 |
| Size | 100x100mm-1500x1500mm |
| Thickness | 8mm-100mm |
| Length | 2-20meters |
| Shape | H-shaped column |
| Delivery Time | 7-15 Days if in stock size, or it will be 20-40 for customized |
| Payment Term | L/C or T/T |
| Package | By bundle or as customer's requirement |
| Application | Engineering or project, plant and equipment, mechanical equipment,
bridge, etc |
| Surface | Black, coating, galavnized |
| MOQ | 30Ton |
What service we could do for you:
1. Structural steel fabrication, painting , galvanizing ,
pre-assembly
2. Designing, fabrication and installation for Prefabricated steel
structure building.
3. Deepen or design the fabrication drawing or shop drawing based
on your architectural drawing and construction drawing
4. Engineering consulting service
Quality control:
QC/Technical Support
Raw material quality control
Thickness tolerance <0.25mm
Yield and tension strength testing in-house
Third party inspection certificate
Supply traceable mill certificate
Structural steel fabrication quality control
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full
penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.
Shot blasting and painting quality control
Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no
welding spatter, Roughness >75um
Paint primer within 5 hours after shot blasting, Holiday-free
coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM
Pre-assembly testing the connection details.
Why us:
1. Professional design team, we could design the drawing as your
requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the
independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects,
we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the
production and service as your request.
5. After sales service: If it has any questions that need us to do
in your process of using, such as the maintain of outside
insulation and steel components, just tell us , we will try to
provide the service as well as we can.
