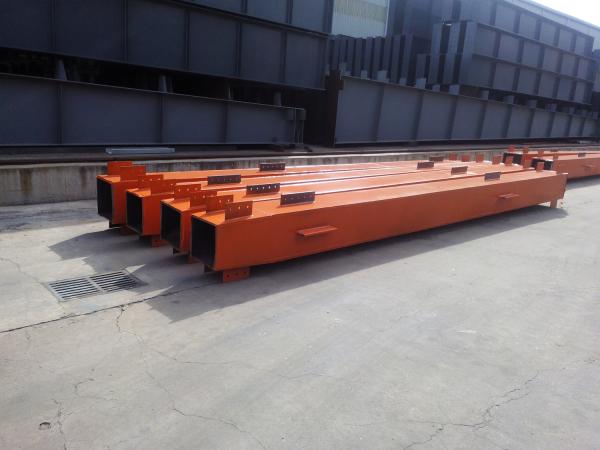

Steel Box Beam Structural Steel Beams And Columns Welded Box Steel
Column
Steel Box Beam Structural Steel Beams And Columns Welded Box Steel
Column is composed of 4 steel plates. The four-way fillet weld is divided
into two types: full penetration groove and partial weld head
groove according to strength. The box type column is provided with
horizontal partitions and main transverse partitions. Welding with
the melted nozzle electroslag welding of the web, three-sided
welded box between the ordinary diaphragm and the cover plate, and
the outer side of the shaped column is provided with the beef leg
and the eye plate perpendicularly supported and connected to the
main beam secondary beam at each elevation, the column The
connection to the column is a combination of welding and top
tightening.
We have one professional production line to fabricate large size
steel structure box beam, box column.
One fabrication method of steel box beam & box column:
The four-corner fillet of the box-type column cover is designed
into two types: full-welded groove and partial-welded groove
according to strength requirements. The two-way intersection is in
accordance with the full penetration groove→transition
section→partial weld penetration groove. For the transition, the
transition section is taken in the grooved area, and the length of
the transition section is 40 mm and the groove is recessed 6 to 8
mm.
Quality control:
We have strict Quality Control Department to control the quality
including inspection for raw steel material & welding quality &
painting. Third-party inspection is welcomed.
Specification:
| Products Name | Steel Box Beam Structural Steel Beams And Columns Welded Box Steel
Column |
| Grade | Q235B,SS400,Q345B,S235JR,S275JR,ASTM-A36 |
| Size | 100x100mm-1500x1500mm |
| Thickness | 8mm-100mm |
| Length | 2-20meters |
| Shape | Box shaped |
| Delivery Time | 7-15 Days if in stock size, or it will be 20-40 for customized |
| Payment Term | L/C or T/T |
| Package | By bundle or as customer's requirement |
| Application | Engineering or project, plant and equipment, mechanical equipment,
bridge, etc |
| Surface | Black, coating, galavnized |
| MOQ | 30Ton |
What service we could do for you:
1. Structural steel fabrication, painting , galvanizing ,
pre-assembly
2. Designing, fabrication and installation for Prefabricated steel
structure building.
3. Deepen or design the fabrication drawing or shop drawing based
on your architectural drawing and construction drawing
4. Engineering consulting service
What kind of project we engage in
1. Light gauge prefabricated steel warehouse, workshop, shed,
storage
2. Heavy industrial steel warehouse, workshop
3. Steel structure warehouse, workshop with crane
4. Truss roof steel warehouse, workshop
5. Steel frame structure cold storage
6. Prefab steel house, villa, resident building, high-rise building
7. Car parking, garage
8. Structural steel fabrication for heavy industrial field
