Project introduction:
Prefab Steel Industrial Building / Steel Frame Industrial Buildings
Construction. This is a heavy industrial steel workshop for rail traffic
equipment product. We design the proposal and drawing, fabrication
for the steel structure components, installation for the steel
structure, overhead crane, roof and wall insulation panel for this
project.

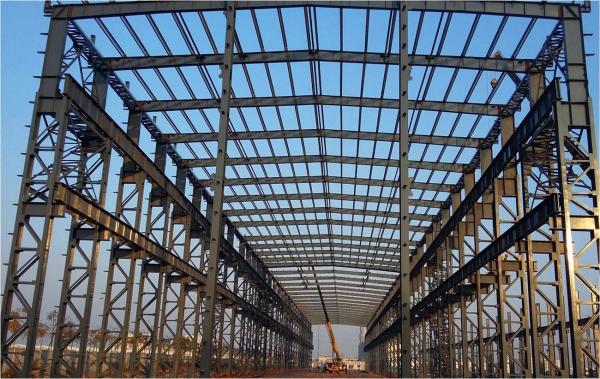

Because of the height of this steel workshop building and heavy
capacity of overhead crane, we design the steel column to be
latticed steel column, it could bear large load from the crane and
wind load and also save steel quantity.
Steel frame structure bulidings has lots advantages compared with
concrete building such as high strength, large span, simple
construction, short construction period: all components are
prefabricated in the factory, the site is simply assembled, thus
greatly shortening the construction period, a 6000 square meters of
buildings, only 40 days to complete the basic
installation.Beautiful and practical: the steel structure building
line is simple and smooth, has the modern feeling.Color wall panels
are available in a variety of colors, and other materials can be
used for the wall, so it is more flexible.Reasonable cost: the
steel structure building is light in weight, which reduces the
basic cost, and the construction speed is fast, which can be
completed and put into production as soon as possible. The
comprehensive economic benefit is much better than the concrete
structure building.
Project information for Heavy Industrial Steel Workshop:
| Name | Prefab Steel Industrial Building / Steel Frame Industrial Buildings
Construction |
| Structure Type | portal frame, single ridge, multi spans |
| Length | 240m |
| Width | 120m |
| Eave Height | 19m |
| Roof Slope | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof | 75 mm thick Rock wool sandwich panel |
| Wall | 75 mm thick Rock wool sandwich panel |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Height difference between indoor and outdoor | 300mm |
Main parts of the steel structures and technical parameters
| Main Steel Frame System |
| Main structure | H section steel Q355, alkyd painting, two primary painting, two
finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd
painting) |
| Wall & Roof System |
| Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock
wool/PU) |
| Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock
wool/PU) |
| Edge cover | 0.5mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system |
| Gutter | 0.5mm color steel plate |
| Rainspout pipes | Φ110 PVC pipe |
Our steel structure production factory:
How to install:
Method 1: We provide construction drawing before installation.
Method 2: If you still don't know how to install, We will teach you
the installation in our factory. when necessary , we will assemble
a sample steel structure building for you.
Packing and transport:
All the structure components, panels,bolts and sort of accessories
will bewell packed with standard package suitable ocean
transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory
using crane and forklift by our skilled workers,who will prevent
the goods to be damaged.
What we do:
We can produce light and heavy steel structure buildings, such as
warehouse, workshop, storage, construction materials, high rise
steel office buiding, factory , plant, exhibition hall, steel tile.
How to quote:
The following question we need to know before making the price.
Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much
lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m |
