Large Steel Frame Structure Metal Buildings For Farmers Produce
Market
Project information:

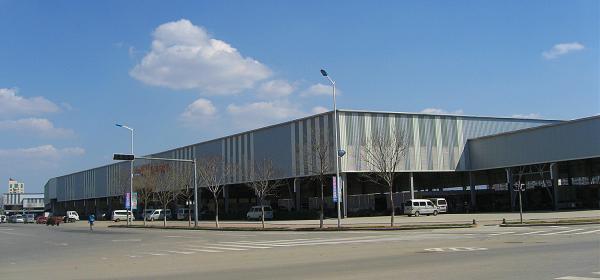

Large Steel Frame Structure Metal Buildings For Farmers Produce
Market . It is a large span steel frame structure building for
farmers produce fair or vegetable market. In order to provide more
space and convenience for going through inside of this steel frame
structure building, we dont design middle column in it. To check
and guarantee the connection accuracy and firmness of the large
span steel structure in a row, we do pre-assembly in our factory.
We are the EPC Contractor for this project, we design the drawing,
fabrication for steel colum and beam in our factory, then we
installed it in one month.
Pre-engineered steel frame building is widely used for the
large-scale workshop, or used for the warehouse, supermarkets,
entertainment centers and other buildings. And the steel building
is good at easy installation, stable structure, earthquake
proofing, water proofing, energy conserving and environmental
protection, etc.
Specification of Material list of steel frame structure building:
| Steel Frame | H section steel | Q235/Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding |
| Rust removal | Sand blasting |
| Surface finish | Alkyd paint or galvanized |
| Intensive bolt | M20,Grade 10.9 |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ20, Steel Q235, processed and painted |
| Column brance | Φ20, Steel Q235, processed and painted |
| Tie rod | Φ89*3, Steel Q235, processed and painted |
| Ordinary bolt | M12 Galvanized bolt |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel or corrugated steel sheet |
| Sky light | 6mm thick PVC |
| Accessories | Glass cement, self-tapping screws, etc. |
| Edge cover | 0.4mm steel sheet profile trimming |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet |
| Down pie | Φ110PVC |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | Sandwich panel or corrugated steel plate |
| Accessories | Glass cement, self-tapping screws, etc. |
| Edge cover | 0.4mm steel sheet profile trimming |
| Ventilation | Ventilation ball |
| Doors & windows | Rolling door/sliding door PVC/alu/steel/window |
Our steel structure production line:
The floor space of our steel structre fabrication factory is
35,000㎡, and the workshop area is 20000㎡. We own three light/heavy
H steel production lines, BOX production lines, C/Z purlin
production lines and various types of profiling steel sheet
machines with advanced equipment such as plasma cutting machine.
Why us?
1. Professional design team, we could design the drawing as your
requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the
independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects,
we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the
production and service as your request.
5. After sales service: If it has any questions that need us to do
in your process of using, such as the maintain of outside
insulation and steel components, just tell us , we will try to
provide the service as well as we can.
The following question we need to know before making the price if
you need us to design:
Just feel free to fill the form based on what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much
lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m |
