Pre Built Steel Buildings Portal Frame Structure Factory Buildings
Construction
General information:
Pre Built Steel Buildings Portal Frame Structure Factory Buildings

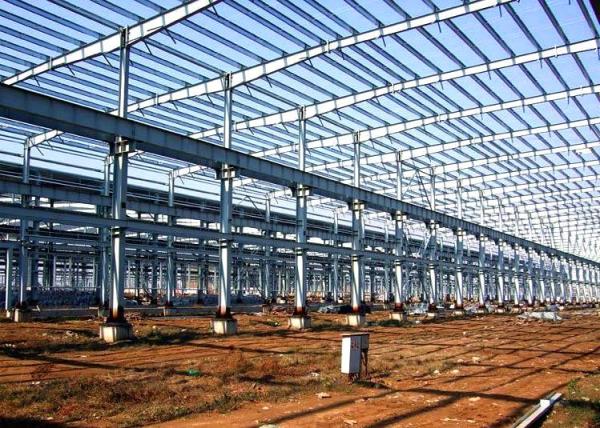

Construction. This Pre Built Steel Buildings Portal Frame Structure
Factory Buildings is a new-built modern tyre production factory.
Our service scope for this project include steel structure design,
fabrication and construction.
In the construction industry, with the increasing popularity of
prefabricated steel structure factory buildings, the fabrication,
transportation and installation technology of prefabricated steel
structure factory has received more and more attention, and it has
also been rapidly developed and continuously improved.
Project information for Prefabricated steel building:
| Name | Pre Built Steel Buildings Portal Frame Structure Factory Buildings
Construction |
| Structure Type | Portal frame, single ridge, two slopes, multi spans |
| Length | 240 m |
| Width | 160m |
| Eave Height | 12m |
| Roof Slope | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof | steel cladding sheet, sandwich panel |
| Wall | steel cladding sheet, sandwich panel |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Height difference between indoor and outdoor | 300mm |
Material list and technical parameters:
| No. | Item | Details of steel structure building or steel frame |
| 1 | Material | Material | carbon structural steel |
| 2 | Produce | Lead time | Normallly 45days after down payment, also according to quantity. |
| 3 | Quality | Certification | Quality certificate from factory, the third party by client
request. |
| 4 | Dimensions | Length | H beam: 4000-15000mm |
| 5 | Thickness: | web plate: 6-32mm |
| 6 | wing plate: 6-40mm |
| 7 | Height | 200-1200mm |
| 8 | Color | According to customers |
| 9 | Size | MOQ is 1000 m2, width * length * eave height, |
| 10 | Main components | Base | Cement and steel foundation bolts |
| 11 | Main frame | H Steel beam, Q235 Q345 steel H beam and columns, painted or
galvanized, box steel, galvanized C section or steel pipe |
| 12 | Secondary frame : | galvanized C or Z purlin , steel bracing , tie bar , knee brace
,flashing etc. |
| 13 | Material | Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN,
IPE,AISI,JIS, |
| 14 | Purlin | C or Z purlin: Size from C120~C320, Z100~Z20 |
| 15 | Column | X-type, tree type ,lattice, Cross, Box etc. |
| 16 | Bolt | Plain bolt and High-strength bolt |
| 17 | Roof & wall | PU sandwich panel, Rockwool sandwich panel or Corrugated steel
sheet |
| 18 | Canopy | steel sheet, PU sandwich panel, Rockwool sandwich panel |
| 19 | Door | Sliding or rolling door |
| 20 | Window | Aluminium alloy window |
| 21 | Surface | Two lays of rust-proof painting or Hot Dip Galvanized |
| 22 | Sheet | 0.5mm or 0.6mm galvanized sheet |
| 23 | Accessories | Semi-transparent skylight belts, Ventilators,down pipe, Galvanized
gutter, Trim, flashing, etc |
| 24 | Finishing options | Vast array of colors and textures available, Alkyd painting, two
primary painting, two finish painting (gray paint, red paint, white
paint, epoxy zinc etc.). Or Galvanized. |
| 25 | Usages | 1. Steel workshop, steel warehouse, steel structure plant |
| 26 | 2. Steel web frame structure |
| 27 | 3. Steel H-column and steel H-beam |
| 28 | 4. Portal frame products |
| 29 | 5. High rise building project |
| 30 | 6. Others steel structure buildings |
| 31 | Drawing | According to drawings or steel structure design, according to
customer's requirement. |
Our steel structure production line:
The floor space of our steel structre fabrication factory is
35,000㎡, and the workshop area is 20000㎡. We own three light/heavy
H steel production lines, BOX production lines, C/Z purlin
production lines and various types of profiling steel sheet
machines with advanced equipment such as plasma cutting machine.
How to install:
Before the installation of the steel structure factory building, it
is necessary to do a good job in all the preliminary work. For
example, before lifting, the installer should re-test the
components, and the lifting can only be carried out under the
premise that the components are not deformed and the installation
dimensions are correct. In addition, the installer should also
check the pre-embedded bolts or cups of the steel column foundation
on the premise that the strength of the foundation concrete meets
the specifications. If the position of the foundation and the
height of the elevation are found to be deviated, the part should
be recorded. In order to adjust the position of the steel column.
Packing and transport:
All the structure components, panels,bolts and sort of accessories
will bewell packed with standard package suitable ocean
transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory
using crane and forklift by our skilled workers,who will prevent
the goods to be damaged.
How to quote:
The following question we need to know before making the price.
Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much
lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m |
