Multi Floor Steel Structure Office Building With Glass Curtain Wall
Multi Floor Steel Structure Office Building With Glass Curtain

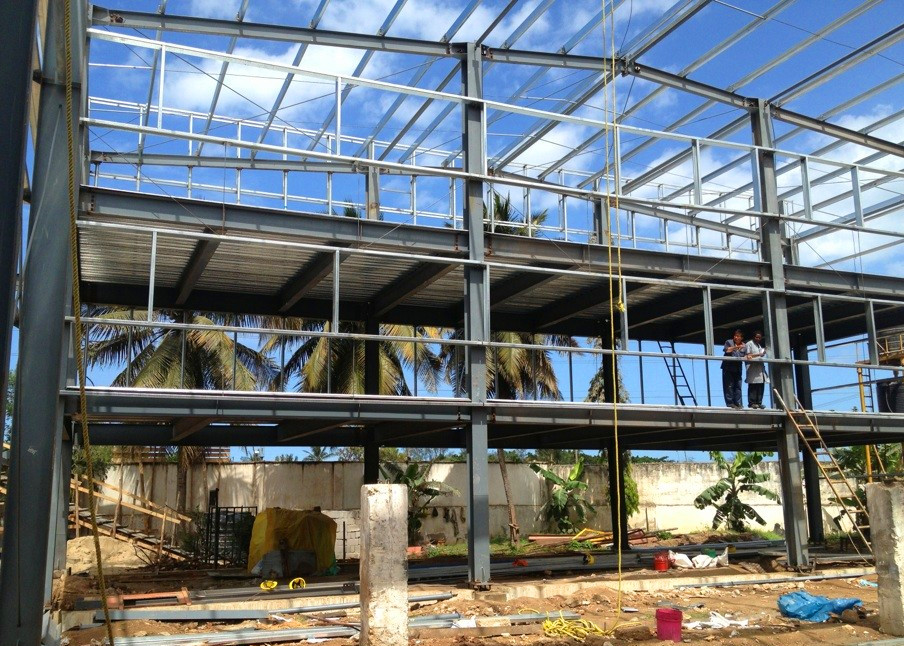

Wall. Three floors steel frame structure building with office, overall
floorage is 3600 square meters. We provide wleded steel
beam&column, steel floor deck, purlin, window and doors and
other accessory.
1. Three floors steel frame structure:
2.Steel beam, column and purlin: material Q345(S355JR)or Q235(S235JR) steel, all bolts connection
,straight cross-section or Variable cross-section
3. Steel floolr deck and internal parting wall
4. Glass curtain wall
5. Surfrace for steel structure: Paint and hot dip galvanized
Main parts of the steel structures and technical parameters:
| Main Steel Frame System |
| Main structure | H section steel Q345, alkyd painting, two primary painting, two
finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd
painting) |
| Wall & Roof System |
| Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock
wool/PU) |
| Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock
wool/PU) |
| Edge cover | 0.5mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system |
| Gutter | 0.5mm color steel plate |
| Rainspout pipes | Φ110 PVC pipe |
Advantages of steel structure buildings
| 1 | Steel structural material has high strength and light weight | The steel structure has high strength. Compared with the concrete
structure, the steel structure beam and the column cross-sectional
area are small, which can increase the effective use area.
Generally, the cross-sectional area of the high-rise steel
structure column accounts for about 3% of the building area, and
the cross-sectional area of the high-rise concrete structure
accounts for 7%-9% of the building area. |
| 2 | Steel structure construction speed is fast | Most of the steel structure is produced in the factory and
transported to the site for integral assembly by welding or
bolting. It can be used all day, because the steel structure itself
can be used as a load-bearing structure for the construction load
to reduce the formwork during construction, thus not only reducing
costs, but also greatly speeding up Construction speed. The
construction speed of the steel structure is about 1.5 times that
of the concrete structure. |
| 3 | Convenient pipeline layout | In the structural space of the steel structure, the truss type
member or the member having the cavity can be used, so that the
arrangement of the pipeline is convenient, and the replacement and
repair of the pipeline is convenient. However, if a concrete
structure is used, the beam should not be opened, and the pipe
generally passes under the beam, thereby occupying a certain space.
In the case of the same floor height, the floor height of the steel
structure can be smaller than the floor height of the concrete
structure, which can reduce the area of the outer wall. |
| 4 | The steel construction environment is less polluted | When steel structure is constructed, sand, stone, soil, cement and
other materials are rarely used, and pollution problems such as
dust flying, waste accumulation and noise are avoided from the root
wood. |
| 5 | Steel structure construction conforms to sustainable development
policy | The steel structure industry is a green-bag environmental
protection construction industry. Its utilization of resources and
energy is relatively reasonable, and has little damage to the
environment. |
Packing And Loading:
All the structure components, panels,bolts and sort of accessories
will bewell packed with standard package suitable ocean
transportation and loaded into 40’HQ.
