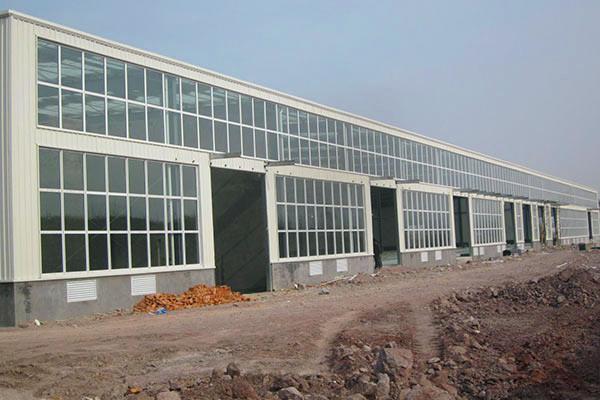

Prefabricated Structural Steel Buildings Construction Warehouse
Builders
Steel frame structure warehouse is mainly composed of
high-efficiency structural steel and high-efficiency functional
materials such as hot-rolled light H steel, light welded steel,
high-frequency welded steel, cold-formed thin-walled steel, thin
steel plate and thin-walled steel pipe. The material is a
sub-assembled, lightweight, fully assembled steel structure that
meets the specific functional requirements of the building and the
specific space requirements. Compared with concrete warehouse, prefabricated steel warehouse has
such advantage: Save construction cost and construction time, high
structure stability, larger inside space.
We could provide integated service for such project including
designing, fabrcation all the steel structure components and roof &
wall insulation material, installation.
Project information for this prefabricated steel structure
warehouse
| Name | Prefabricated Structural Steel Buildings Construction Warehouse
Builders |
| Structure Type | portal frame, single ridge, double span |
| Length | 150m |
| Width | 60m |
| Eave Height | 9m |
| Roof Slope | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof | 75 mm PU sandwich panel |
| Wall | 75 mm PU sandwich panel |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Height difference between indoor and outdoor | 300mm |
Main parts of the steel structures and technical parameters
| Main Steel Frame System |
| Main structure | H section steel Q355, alkyd painting, two primary painting, two
finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd
painting) |
| Wall & Roof System |
| Roof panel | 75 mm PU sandwich panel |
| Wall panel | 75 mm PU sandwich panel |
| Edge cover | 0.5mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system |
| Gutter | 0.5mm color steel plate |
| Rainspout pipes | Φ110 PVC pipe |
How to install
We will provide installation drawing firstly. Then we could
dispatch our engineer to guide installation on site.
Packing and transport
All the structure components, panels,bolts and sort of accessories
will bewell packed with standard package suitable ocean
transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory
using crane and forklift by our skilled workers,who will prevent
the goods to be damaged.
Why did you choose us
Many customers have visited our factory for the long term
cooperation."Quality firstly,Customer firstly" is our company
principle.We obtain sound reputation because of our good quality
and service. Meanwhile,We pay attention to the team work and value
win-win cooperation, which would guide us much further.
- Low cost---Professional design, less construction time; saving raw
materials.
- Environmental protection---specialized cladding materials guarantee
excellent acoustic and insulation performance; no pollution ;Raw
material can be recycled
- Comfortable and aesthetic---higher using areas and bigger building
bays afford us wider viewpoints; distinctive and elegant profiles.
