New Design Prefab Steel Structure Warehouse Building Metal Material
Construction
Project information:

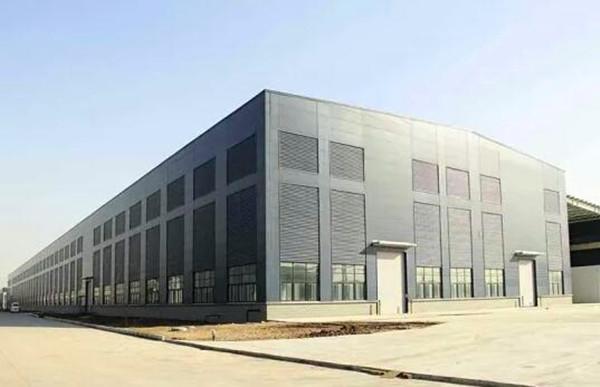

New Design Prefab Steel Structure Warehouse Building Metal Material
Construction that is built to process and store agricultural machinery. Steel
frame structure and new-type insulation panel for wall and roof
make the warehouse building has better structure stablity and
modern appearance.With the rapid development of industrial construction, steel
structure warehouses and workshops have been widely used. Steel
structure warehouses and workshops have significant advantages:
light weight, high strength, large span and environmental
protection.
Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel
structure fabrication and construction company for light and heavy
steel structure project. Our service include design, fabrication
for all the steel structure components and insullation panel,
installation on site.
Material list and technical parameters:
| No. | Item | Details of steel structure building or steel frame |
| 1 | Material | Material | carbon structural steel |
| 2 | Produce | Lead time | Normallly 45days after down payment, also according to quantity. |
| 3 | Quality | Certification | Quality certificate from factory, the third party by client
request. |
| 4 | Dimensions | Length | H beam: 4000-15000mm |
| 5 | Thickness: | web plate: 6-32mm |
| 6 | wing plate: 6-40mm |
| 7 | Height | 200-1200mm |
| 8 | Color | According to customers |
| 9 | Size | MOQ is 1000 m2, width * length * eave height, |
| 10 | Main components | Base | Cement and steel foundation bolts |
| 11 | Main frame | H Steel beam, Q235 Q345 steel H beam and columns, painted or
galvanized, box steel, galvanized C section or steel pipe |
| 12 | Secondary frame : | galvanized C or Z purlin , steel bracing , tie bar , knee brace
,flashing etc. |
| 13 | Material | Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN,
IPE,AISI,JIS, |
| 14 | Purlin | C or Z purlin: Size from C120~C320, Z100~Z20 |
| 15 | Column | X-type, tree type ,lattice, Cross, Box etc. |
| 16 | Bolt | Plain bolt and High-strength bolt |
| 17 | Roof & wall | PU sandwich panel, Rockwool sandwich panel or Corrugated steel
sheet |
| 18 | Canopy | steel sheet, PU sandwich panel, Rockwool sandwich panel |
| 19 | Door | Sliding or rolling door |
| 20 | Window | Aluminium alloy window |
| 21 | Surface | Two lays of rust-proof painting or Hot Dip Galvanized |
| 22 | Sheet | 0.5mm or 0.6mm galvanized sheet |
| 23 | Accessories | Semi-transparent skylight belts, Ventilators,down pipe, Galvanized
gutter, Trim, flashing, etc |
| 24 | Finishing options | Vast array of colors and textures available, Alkyd painting, two
primary painting, two finish painting (gray paint, red paint, white
paint, epoxy zinc etc.). Or Galvanized. |
| 25 | Usages | 1. Steel workshop, steel warehouse, steel structure plant |
| 26 | 2. Steel web frame structure |
| 27 | 3. Steel H-column and steel H-beam |
| 28 | 4. Portal frame products |
| 29 | 5. High rise building project |
| 30 | 6. Others steel structure buildings |
Our service:
1. Structural steel fabrication, painting , galvanizing ,
pre-assembly
2. Designing, fabrication and installation for Prefabricated steel
structure building.
3. Deepen or design the fabrication drawing or shop drawing based
on your architectural drawing and construction drawing
4. Engineering consulting service
Designing&Detailing:
We have a dedicated steel structure engineering design department
and research and development department, and established an
independent and complete steel structure engineering design,
optimization and deepening design system. Establishing engineering
materials than building materials, we not only control the
reliability and economy of the structure, but also the categories,
performance, selection and combination of traditional enclosing
materials and new maintenance materials. Our design is not only
more applicable, safer, more economical, but also rich in
architectural beauty.
How to install:
We will provide construction drawing for each project to guide
installation. We will teach you the installation in our factory. We
could dispatch our engineer to guide installation on site or we
install it by our construction team.
