Structural Steel Structure Warehouse / Workshop Industrial Steel
Construction
Project description:

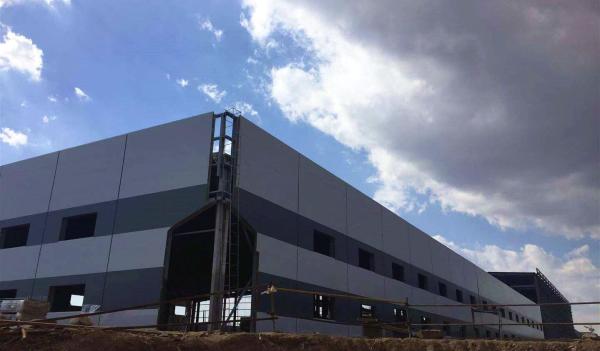

The covered area of this Structural Steel Structure Warehouse /
Workshop Industrial Steel Construction is more than 23,000 square
meter. Such integrated steel frame structure building has been an
trendency, because it is easy to construction, save cost, provide
more space, strong structure stability. Take this project as a
example. We fabricated about 1800 tons steel structure in our
factory in one month, and we completed the installation for both
the steel warehouse and multi-floor steel office in one month
including installation for roof and wall panel, windows and doors,
etc.
Basic information of this project:
| Main Steel Frame System |
| Main structure | H section steel Q355, alkyd painting, two primary painting, two
finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd
painting) |
| Wall & Roof System |
| Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock
wool/PU) |
| Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock
wool/PU) |
| Edge cover | 0.5mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system |
| Gutter | 0.5mm color steel plate |
| Rainspout pipes | Φ110 PVC pipe |
Design:
For such project , we will design the preliminary layout drawing,
3D Tekla model and installation drawing to contribute to the
completion of the project.
Installation:
1: We provide shop drawing before installation.
2. Then our engineer guide on site for installation
Packing And Loading:
All the structure components, panels,bolts and sort of accessories
will bewell packed with standard package suitable ocean
transportation and loaded into 40’HQ.
Information need you provide if you have such requirement to let us
design and quote:
1. Width__________M
2. Length________M
3. Eave high__________M
4. Please also provide your local Wind load or wind speed, snow
load if you know.
5. Brick wall or concrete wall high(if any)_________M
6. Ventilation: A. no B. Normal C. natural D. ventilator
7. Wall and roof: A. EPS sandwich panel B. PU panel
C. rockwool panel D. steet sheet thickness:__________________
8. Door: A.sandwich panel sliding door B.rolling door
size:__________________
9. Window: A.aluminium window B.pvc window size
:_____________________
10. Lighting: A.skylight board B. thickness:________
11. Crane: A. No B. Yes and what is the quantity and capacity.
