Steel Structure Helicopter Hangar Construction Steel Frame
Structure Maintenance Workshop

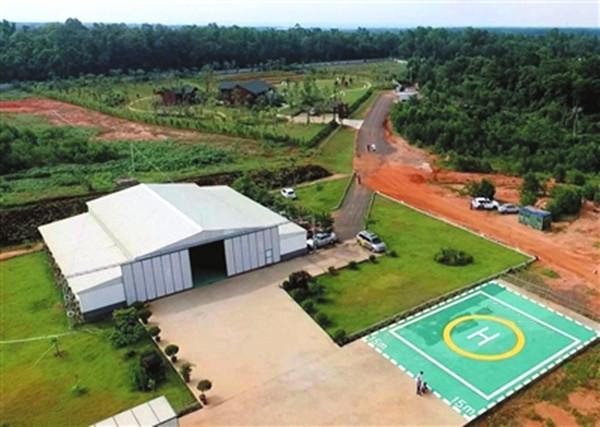

This is a Steel Structure Helicopter Hangar Construction Steel Frame
Structure Maintenance Workshop. It is built to park and maintain helicopter.
It is a portal frame structure hangar. Welded H-section steel beams
and columns are connected by high strength bolts to be the main
frame structure. Portal frame structure building could provide
large space and stable structure.
Our service for such project include designing, fabrcation all the
steel structure components and roof & wall insulation material,
installation.
Project information for this portal frame structure hangar:
| Name | Steel Structure Helicopter Hangar Construction Steel Frame
Structure Maintenance Workshop |
| Structure Type | portal frame, single ridge, three span |
| Length | 130m |
| Width | 80m |
| Eave Height | 10m |
| Roof Slope | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof | 75 mm Glass wool sandwich panel |
| Wall | 75 mm Glass wool sandwich panel |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Height difference between indoor and outdoor | 300mm |
Main parts of the steel structures and technical parameters:
| Main Steel Frame System |
| Main structure | H section steel Q355, alkyd painting, two primary painting, two
finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd
painting) |
| Wall & Roof System |
| Roof panel | 75 mm Glass wool sandwich panel |
| Wall panel | 75 mm Glass wool sandwich panel |
| Edge cover | 0.5mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system |
| Gutter | 0.5mm color steel plate |
| Rainspout pipes | Φ110 PVC pipe |
Our steel structure fabrication factory:
Our service:
1. Structural steel fabrication, painting , galvanizing ,
pre-assembly
2. Designing, fabrication and installation for Prefabricated steel
structure building.
3. Deepen or design the fabrication drawing or shop drawing based
on your architectural drawing and construction drawing
4. Engineering consulting service
Packing and transport:
All the structure components, panels,bolts and sort of accessories
will bewell packed with standard package suitable ocean
transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory
using crane and forklift by our skilled workers,who will prevent
the goods to be damaged.
How to quote:
The following question we need to know before making the price.
Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much
lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m |
