Car Maintenance Shop Steel Structure Workshop Buildings
Construction
Project introduction:

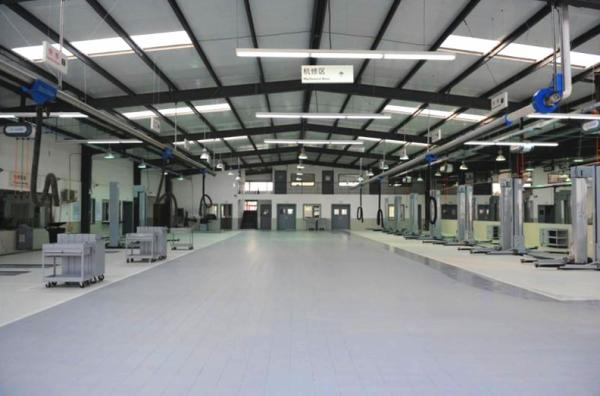

Car Maintenance Shop Steel Structure Workshop Buildings
Construction. This is a Steel Structure Workshop Buildings Steel
Framing System For Car Maintenance Shop. The steel frame structure
of this light metal shop buildings is weld H-section steel columns
and beams. Glass wool sandwich panel is used as roof and wall
insulation panels.
Prefab steel frame structure buildings is widely used as factory,
warehouse, workshops, office buildings, residence buildings,
stadiums and other buildings. The building structure system is
usually formed by the main framework through linking up the H
beam,Column, purlin.Roof and wall using a variety of panels
together with other components such as windows and doors. Prefab
steel frame structure buildings has the advantages of wide span,
large inside space, high strength, light weight, low cost, short
construction time, good effect of insulation, good seismic
performance, flexible layout,etc.
Name | Car Maintenance Shop Steel Structure Workshop Buildings
Construction |
Structure Type | Gable frame, single ridge, two spans |
Length | 80m |
Width | 40m |
Eave Height | 11m |
Roof Slope | 10% |
Gable Wall Column Spacing | 7.5m |
Roof | Glass wool sandwich panel |
Wall | Glass wool sandwich panel |
Door | Sliding door |
Window | Ribbon Skylight |
Height difference between indoor and outdoor | 300mm |
Our advantage:
| 1 | Professional design team | We could design the drawing as your requirement or calculate the
steel quantity based on your drawing. |
| 2 | Skilled fabrication team and advanced equipment | We make the independent production schedule to each project. Our
engineers will introduce and train workers for each project before
fabrication works start. |
| 3 | One-stop service | Nearly each steel structure project is customized by our clinets’
requirement. We have completed lots such kinds of projects, we
could provide the integrated proposal for your project. |
| 4 | Professional QC team | Professional QC team will guarantee that we will provide the
production and service as your request. |
| 5 | After sales service | If it has any questions that need us to do in your process of
using, such as the maintain of outside insulation and steel
components, just tell us , we will try to provide the service as
well as we can. |
Material list and technical parameters:
Main Parts | Item Name | Specification |
Main Steel Frame
|
Steel Column
| Q235B, Q345B |
H shape, Box, Steel pipe, Hot rolled sheet |
Steel Beam
| Q235B, Q345B |
H shape, Steel Truss, Hot rolled sheet |
Brace
| Q235B, Q345B |
Steel rod, Steel pipe, Angle steel |
Roof Purlin | C or Z shape, Steel purlin |
Supporting System
|
Wall Purlin
| Q235B, Q345B |
C or Z shape, Steel purlin |
Roof | Single colorful corrugate steel sheet, Sandwich panel with EPS,
Rock wool, PU, Glass wool etc., |
Wall | Single colorful corrugate steel sheet, Sandwich panel with EPS,
Rock wool, PU, Glass wool etc., |
Accessories
| Bolts | Ordinary, High strength |
Gutter | Galvanized Steel plate, Stainless steel |
Windows | Aluminum alloy-Glass, Aluminum alloy-shutter, PVC |
Doors | Sliding or Rolling door |
Downpipes | PVC pipe, Color steel pipe |
Edge Cover | Made of color steel sheet thickness 0.5mm |
Ventilator | Stainless steel |
Crane | Crane in 5 tons to 30 tons |
Steel structure production line:
The floor space of our steel structre fabrication factory is
35,000㎡, and the workshop area is 20000㎡. We own three light/heavy
H steel production lines, BOX production lines, C/Z purlin
production lines and various types of profiling steel sheet
machines with advanced equipment such as plasma cutting machine.
Our service:
1. Structural steel fabrication, painting , galvanizing ,
pre-assembly
2. Designing, fabrication and installation for Prefabricated steel
structure building.
3. Deepen or design the fabrication drawing or shop drawing based
on your architectural drawing and construction drawing
4. Engineering consulting service
How to quote:
The following question we need to know before making the price.
Just feel free to fill what you know.
1 | Location (where will be built?) | _____country, area |
2 | Size: length*width*height | _____mm*_____mm*_____mm |
3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
4 | snow load (max. snow height) | _____kn/m2, _____mm |
5 | anti-earthquake | _____level |
6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much
lower than that of the former |
8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m |
