High Performance Light Metal Steel Structure Workshop Buildings For Auto Repair Center

Qingdao Ruly Steel Engineering Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Performance Light Metal Steel Structure Workshop Buildings For Auto Repair Center from wholesalers

    Buy cheap High Performance Light Metal Steel Structure Workshop Buildings For Auto Repair Center from wholesalers
    • Buy cheap High Performance Light Metal Steel Structure Workshop Buildings For Auto Repair Center from wholesalers
    • Buy cheap High Performance Light Metal Steel Structure Workshop Buildings For Auto Repair Center from wholesalers
    • Buy cheap High Performance Light Metal Steel Structure Workshop Buildings For Auto Repair Center from wholesalers

    High Performance Light Metal Steel Structure Workshop Buildings For Auto Repair Center

    Ask Lasest Price
    Brand Name : Ruly Steel
    Model Number : Ruly0143
    Certification : SGS, BV, ISO
    Price : USD29-USD99 Per Square Meter
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20000 Square Meter Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    High Performance Light Metal Steel Structure Workshop Buildings For Auto Repair Center

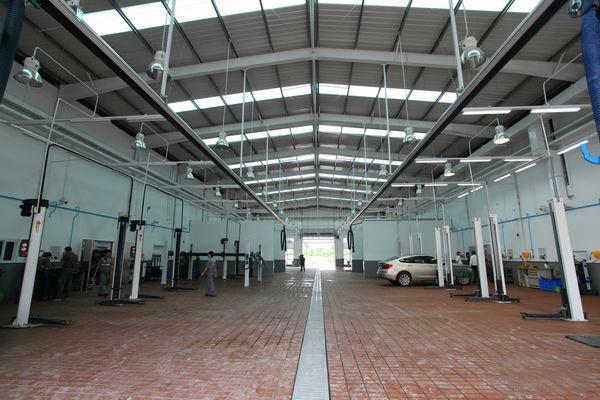

    Light Metal Workshop Buildings For Auto Repair Center Car Repair Services


    Project information:

    This is a Light Metal Workshop Buildings For Auto Repair Center Car Repair Services. The steel frame structure of this light metal shop buildings is welded H-section steel columns and beams that is connected by high strength bolts. Glass wool sandwich panel is used as roof and wall insulation panels. We could design it in clean span or double spans.


    Prefab steel frame structure buildings is widely used as factory, warehouse, workshops, office buildings, residence buildings, stadiums and other buildings. The building structure system is usually formed by the main framework through linking up the H beam,Column, purlin.Roof and wall using a variety of panels together with other components such as windows and doors. Prefab steel frame structure buildings has the advantages of wide span, large inside space, high strength, light weight, low cost, short construction time, good effect of insulation, good seismic performance, flexible layout,etc.


    For such project, we could design it as your request or follow your design, then we fabrcicate the steel structure in our factory.


    Name

    Light Metal Workshop Buildings For Auto Repair Center Car Repair Services​

    Structure Type

    Gable frame, single ridge, clean span or two spans

    Length

    40- 100m

    Width

    20-80m

    Eave Height

    6-15m

    Roof Slope

    10%

    Gable Wall Column Spacing

    7.5m

    Roof

    Glass wool sandwich panel

    Wall

    Glass wool sandwich panel

    Door

    Sliding door

    Window

    Ribbon Skylight

    Height difference between indoor and outdoor

    300mm


    Material list and technical parameters:

    Main Parts

    Item Name

    Specification





    Main Steel Frame


    Steel Column

    Q235B, Q345B

    H shape, Box, Steel pipe, Hot rolled sheet


    Steel Beam

    Q235B, Q345B

    H shape, Steel Truss, Hot rolled sheet


    Brace

    Q235B, Q345B

    Steel rod, Steel pipe, Angle steel

    Roof Purlin

    C or Z shape, Steel purlin




    Supporting System


    Wall Purlin

    Q235B, Q345B

    C or Z shape, Steel purlin

    Roof

    Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc.,

    Wall

    Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc.,






    Accessories

    Bolts

    Ordinary, High strength

    Gutter

    Galvanized Steel plate, Stainless steel

    Windows

    Aluminum alloy-Glass, Aluminum alloy-shutter, PVC

    Doors

    Sliding or Rolling door

    Downpipes

    PVC pipe, Color steel pipe

    Edge Cover

    Made of color steel sheet thickness 0.5mm

    Ventilator

    Stainless steel

    Crane

    Crane in 5 tons to 30 tons


    Steel structure fabrication factory:


    Our service:

    1. Structural steel fabrication, painting , galvanizing , pre-assembly

    2. Designing, fabrication and installation for Prefabricated steel structure building.

    3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

    4. Engineering consulting service


    How to install:

    We will provide installation drawing for each project to guide installation. If you need, we could dispatch our engineer to construction site to guide installation or we install it directly.

    How to quote:

    The following question we need to know before making the price. Just feel free to fill what you know.

    1

    Location (where will be built?)

    _____country, area

    2

    Size: length*width*height

    _____mm*_____mm*_____mm

    3

    wind load (max. wind speed)

    _____kn/m2, _____km/h, _____m/s

    4

    snow load (max. snow height)

    _____kn/m2, _____mm

    5

    anti-earthquake

    _____level

    6

    brickwall needed or not

    If yes, 1.2m high or 1.5m high

    7

    thermal insulation

    If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
    lower than that of the former

    8

    door quantity & size

    _____units, _____(width)mm*_____(height)mm

    9

    window quanity & size

    _____units, _____(width)mm*_____(height)mm

    10

    crane needed or not

    If yes, _____units, max. lifting weight____tons; max. lifting height _____m
