Car Repair Shops Steel Structure Workshop / Prefab Steel Buildings
For Maintenance Workshop
Project information:

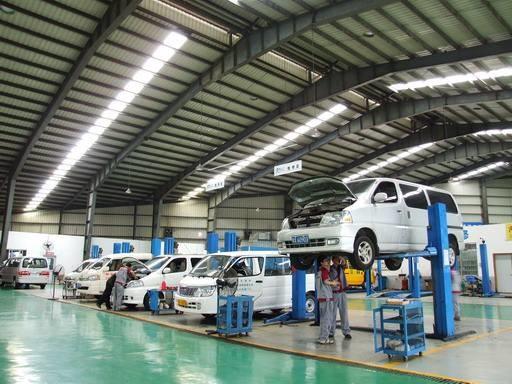

Car Repair Shops Steel Structure Workshop / Prefab Steel Buildings
For Maintenance Workshop. This is a Steel Building Structures Metal
Workshop Cost For Car Repair Shops. The steel frame structure of
this light metal shop buildings is welded H-section steel columns
and beams that is connected by high strength bolts. Glass wool
sandwich panel is used as roof and wall insulation panels. We could
design it in clean span or double spans. It also has office and
storage buildings inside.Due to the overall rigidity and seismic performance of the steel
structure, fast construction speed, light weight and high bearing
capacity, it replaces the reinforced concrete structure in modern
industrial and civil buildings.
For such project, we could design the drawing, fabricate all the
steel structure components, delivery and install it as your
request.
Name | Car Repair Shops Steel Structure Workshop / Prefab Steel Buildings
For Maintenance Workshop |
Structure Type | Gable frame, single ridge, clean span or two spans |
Length | 40- 100m |
Width | 20-80m |
Eave Height | 6-15m |
Roof Slope | 10% |
Gable Wall Column Spacing | 7.5m |
Roof | Glass wool sandwich panel |
Wall | Glass wool sandwich panel |
Door | Sliding door |
Window | Ribbon Skylight |
Height difference between indoor and outdoor | 300mm |
Material list and technical parameters:

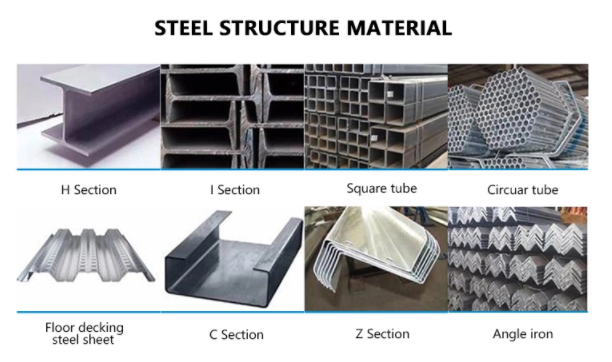

| Item name | Specification | Material Parameter | Technical Treatment |
| Column | H-section steel | Q235B,Q345B | Paint or Hot dip galvanized |
| Beam | H-section steel | Q235B,Q345B | Paint or Hot dip galvanized |
| Bracing | Steel rod,Steel pipe,Angle steel | Q235B,Q345B | |
| Purling | C or Z shape, purling Thickness:1.8mm~3.0mm | Q235B,Q346B | Hot dip galvanized |
| Wall and roof panel | EPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet. | Steel T=0.426~0.8mm,insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet,T=1.0~1.5mm | Paint or Hot dip galvanized |
| Window | alloy-Glass,Aluminium alloy-shutter | T=1.0~2.0mm | Alloy |
| Lighting panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel,stainless steel,PC | Paint or Hot dip galvanized,304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot dip galvanized,304 |
| Downpipe | PVC pipe,Color steel pipe T=0.5mm | Φ110,160,200 | Paint |
| Bolt | Ordinary, high strength | 10.9S,4.8s | Hot dip galvanized |
| Anchor bolt | Steel rod M24,M27 M30 | Q235B | |
Our service:
1. Structural steel fabrication, painting , galvanizing ,
pre-assembly
2. Designing, fabrication and installation for Prefabricated steel
structure building.
3. Deepen or design the fabrication drawing or shop drawing based
on your architectural drawing and construction drawing
4. Engineering consulting service
How to install:
We will provide installation drawing for each project to guide
installation. If you need, we could dispatch our engineer to
construction site to guide installation or we install it directly.
Packing & Loading:
All the structure components, panels,bolts and sort of accessories
will bewell packed with standard package suitable ocean
transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory
using crane and forklift by our skilled workers,who will prevent
the goods to be damaged.
