Light Steel Frame Structure Open Bays Sheds For Construction Site
Building Material
Project introduction:

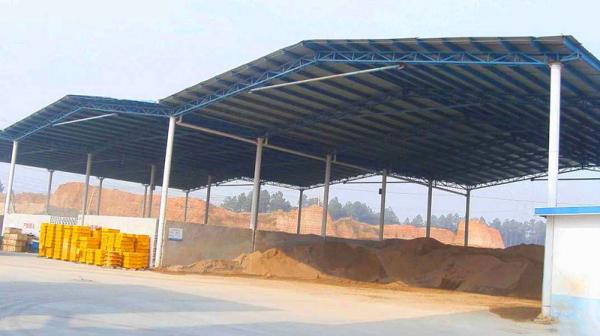

Light Steel Frame Structure Open Bays Sheds For Construction Site
Building Material. This kind of open bays metal sheds could be used
for building material sheds on construction site, farm sheds, rural
sheds, machinery sheds, dry coal sheds. It is made of light steel
structure such as H-section steel, steel tube, square tube, truss
steel. The architectural types include arch roof, truss steel roof,
single span, multi spans, full open bays, front open bays.
Prefab steel frame structure buildings has lots advantages such as
light in weight, high in strength, large in span, short in
construction period, correspondingly reducing investment cost,
convenient to move.
Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel
structure fabrication and construction company for light and heavy
steel structure Design, Manufacture & Installation.
Material list and technical parameters for steel structure
components and accessory:
| Items | Specification |
| Main Steel Frame | Column | Q235, Q345 Welded Steel |
| Beam | Q235, Q345 Welded Steel |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel |
| Tie Rod | Q235 Circular Steel Pipe |
| Brace | Q235 Round Bar |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Rainspout | PVC |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade | 12 Grades |
| Earthquake-resistance | 8 Grades |
| Structure Usage | Up to 50 years |
| Temperature | Suitable temperature.-50°C~+50°C |
| Certification | CE, SGS, ISO9001:2008, ISO14001:2004 |
| Finishing Options | Vast array of colors and textures available |
| Paint Options | Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or
Galvanized. |
Advantages of prefabricated steel structure buildings:
| 1 | High strength and light weight | Although the density of steel is larger than that of other building
materials, its strength is very high. Under the same force, the
steel structure has a small weight and can be made into a structure
with a large span. |
| 2 | Good plasticity and good toughness | The plasticity of the steel is good, and the structure will not
suddenly break due to accidental overload or partial overload. The
toughness of the steel is good, making the structure more adaptable
to dynamic loads. |
| 3 | High degree of industrialization in production | The steel structure is mainly produced in a specialized metal
structure factory, so the production is simple and the precision is
high. |
| 4 | Simple construction and short construction period | All components are prefabricated at the factory, and the site is
simply assembled, which greatly shortens the construction period. |
| 5 | Wind resistance and structural stability | Steel structure construction with light weight, high strength, good
overall rigidity and strong deformation ability |
| 6 | Saving construction costs | The steel structure has light weight, reduces the basic cost, and
has a fast construction speed. It can be completed and put into
operation as soon as possible, and the comprehensive economic
benefits are much better than the concrete structure. |
| 7 | Recyclable | Steel can be recycled, less environmentally polluted when
constructed and removed |
Steel structure fabrication in our factory:
We have three production lines for steel structure fabrication, in
order to serve better for abroad project, we buy some advanced
machine in our production line, such as the plasma cutting machine.
Our service:
1. Structural steel fabrication, painting , galvanizing ,
pre-assembly
2. Designing, fabrication and installation for Prefabricated steel
structure building.
3. Deepen or design the fabrication drawing or shop drawing based
on your architectural drawing and construction drawing
4. Engineering consulting service
How to quote:
The following question we need to know before making the price.
Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be
suggested; . if not, the metal steel sheets will be ok. The cost of
the latter will be much
lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting
height _____m |
