Large Span Prefabricated Steel Frame Buildings Steel Space Frame
Structures

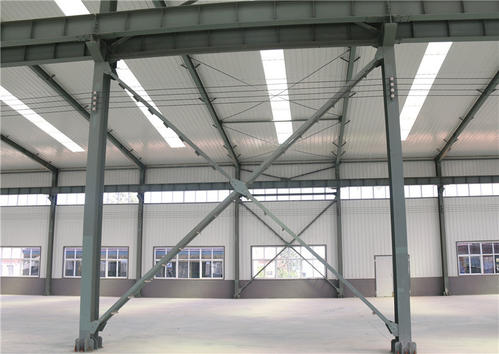

Project description:
The building is used for storage of goods.
For multi - edge, multi - span steel frame structure building.
The total construction area is about 36,000 square meters.
Adopt light high strength steel beam-column connection main steel
frame structure, save space, save cost and weight.
Rock wool sandwich board is used to do roof and wall insulation
board.
Commercial large space large span prefabricated steel frame
building.
We are a professional steel frame structure logistics and
construction engineering company.
We provide you with one-stop service from design, BIM process,
drawing details, steel structure fabrication, shipping and
installation.
Specification of steel structure:
| Item name | Specification | Material Parameter | Technical Treatment |
| Column | H shape,Box,steel pipe,Hot rolled sheet | Q235B,Q355B | Paint or Hot dip galvanized |
| Beam | H shape,steel Truss,Hot rolled sheet | Q235B,Q355B | Paint or Hot dip galvanized |
| Bracing | Steel rod,Steel pipe,Angle steel | Q235B,Q355B | |
| Purling | C or Z shape, purling Thickness:1.8mm~3.0mm | Q235B,Q355B | Hot dip galvanized |
| Wall and roof panel | Rock wool | Steel T=0.426~0.8mm,insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet,T=1.0~1.5mm | Paint or Hot dip galvanized |
| Window | alloy-Glass,Aluminium alloy-shutter | T=1.0~2.0mm | Alloy |
| Lighting panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel,stainless steel,PC | Paint or Hot dip galvanized,304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot dip galvanized,304 |
| Downpipe | PVC pipe,Color steel pipe T=0.5mm | Φ110,160,200 | Paint |
| Bolt | Ordinary, high strength | 10.9S,4.8s | Hot dip galvanized |
| Anchor bolt | Steel rod M24,M27 M30 | Q235B | |
Designing:
Annual maintenance method of steel structure plant:
1. After the installation of our steel structure workshop, the
owner is not allowed to privately change its structure, remove the
bolts and other parts of _, or increase or reduce the partition
wall. If any parts need to be changed, the owner can consult with
the manufacturer and decide whether the change can be made.The
steel structure should be maintained with paint after about 3 years
of use, so as to give the building with beauty and safety.
2. Steel structure workshop should be cleaned and maintained
regularly. Under normal circumstances, inspection and maintenance
should be carried out once a year.When cleaning the outer wall of
the steel structure workshop, we should pay attention not to mess.
We should not use the steel wire ball, brush and other abrasive
cleaning products. When using clean water, we should wash from top
to bottom.Steel structure plant branches, leaves and other similar
objects should be cleaned up in time, so as not to backlog caused
unnecessary trouble.If there is any damage to the surface of the
metal plate in the steel structure workshop, it should be repaired
in time to avoid the corrosion of the metal plate by sun and
rain.If necessary, all the high elastic nano materials are applied
to protect the metal roofing panels, and play an effective role in
heat insulation and waterproof, saving indoor air conditioning
energy.
